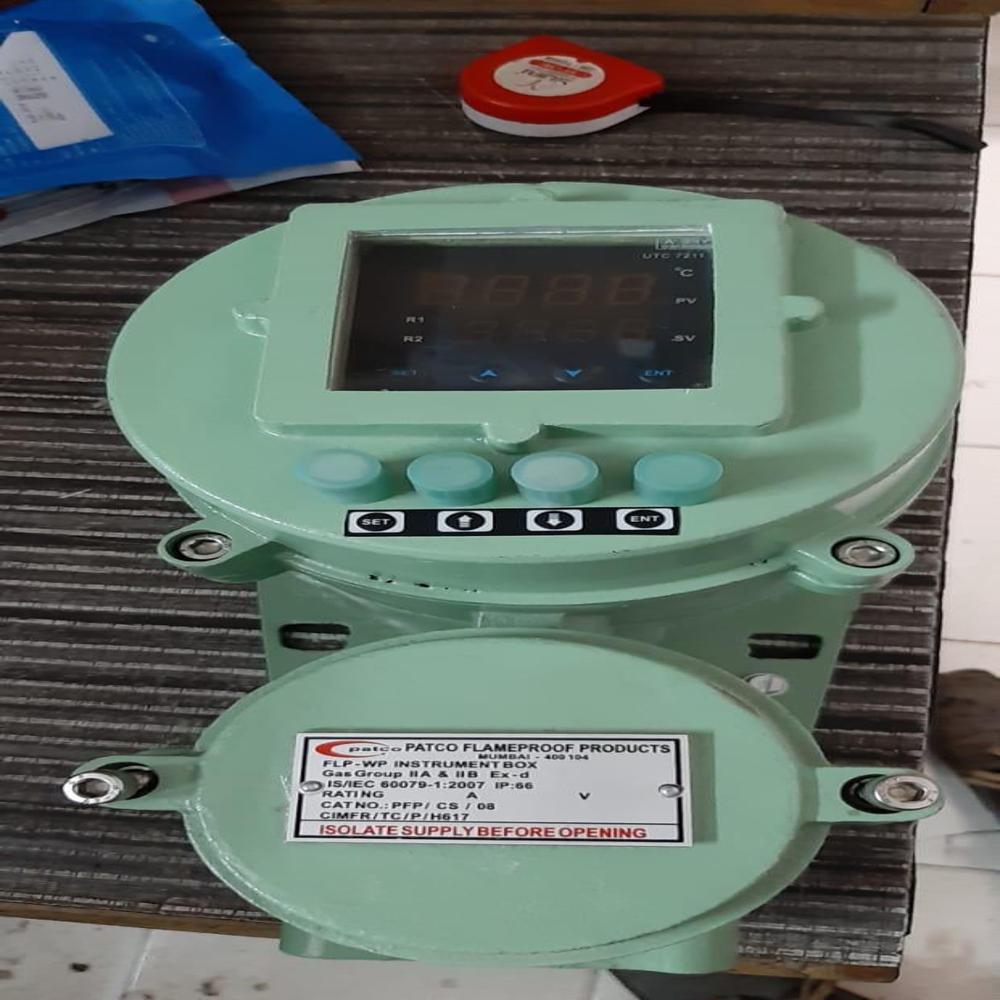

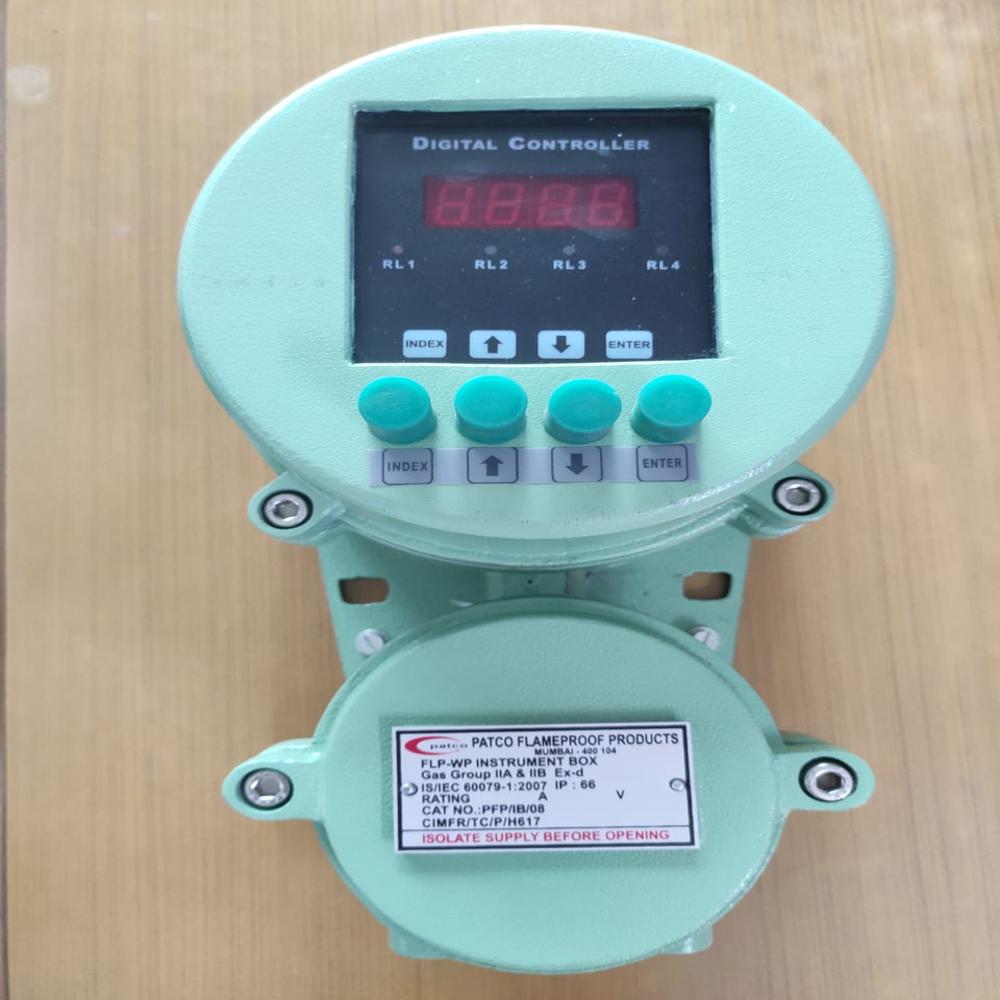

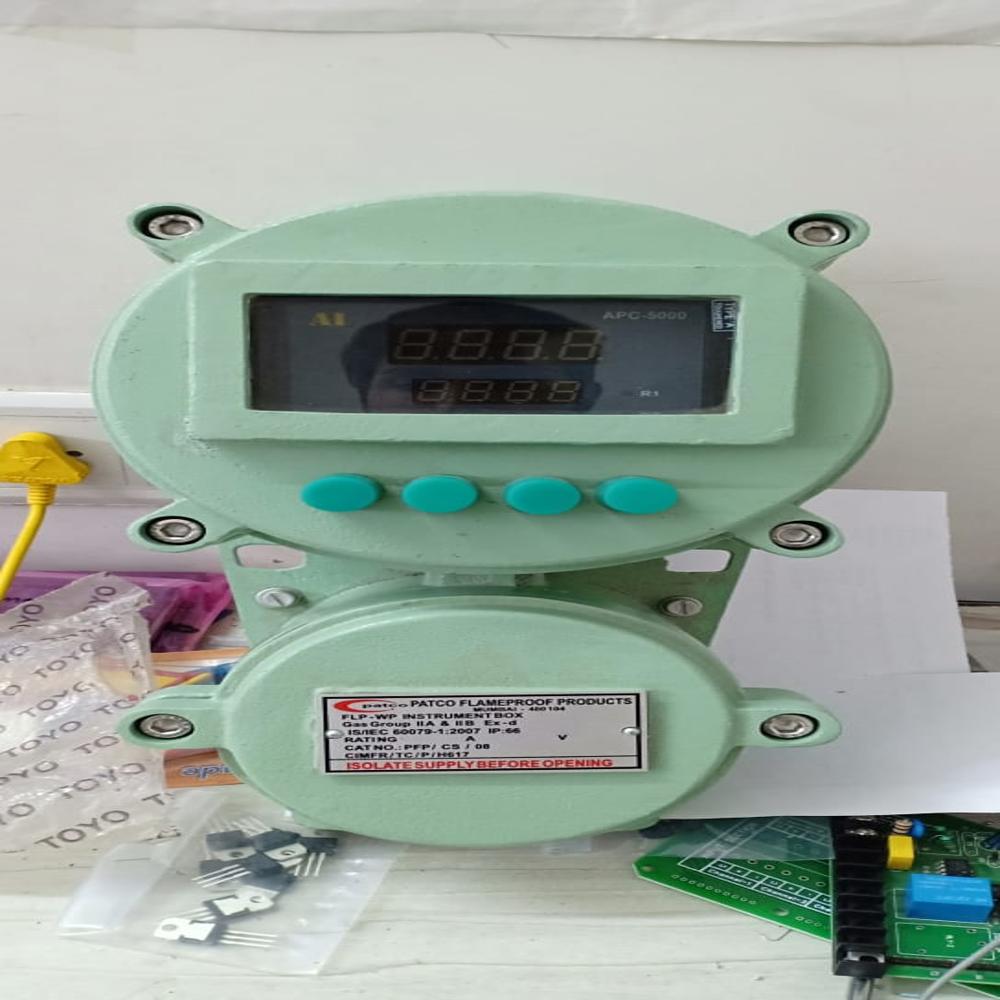

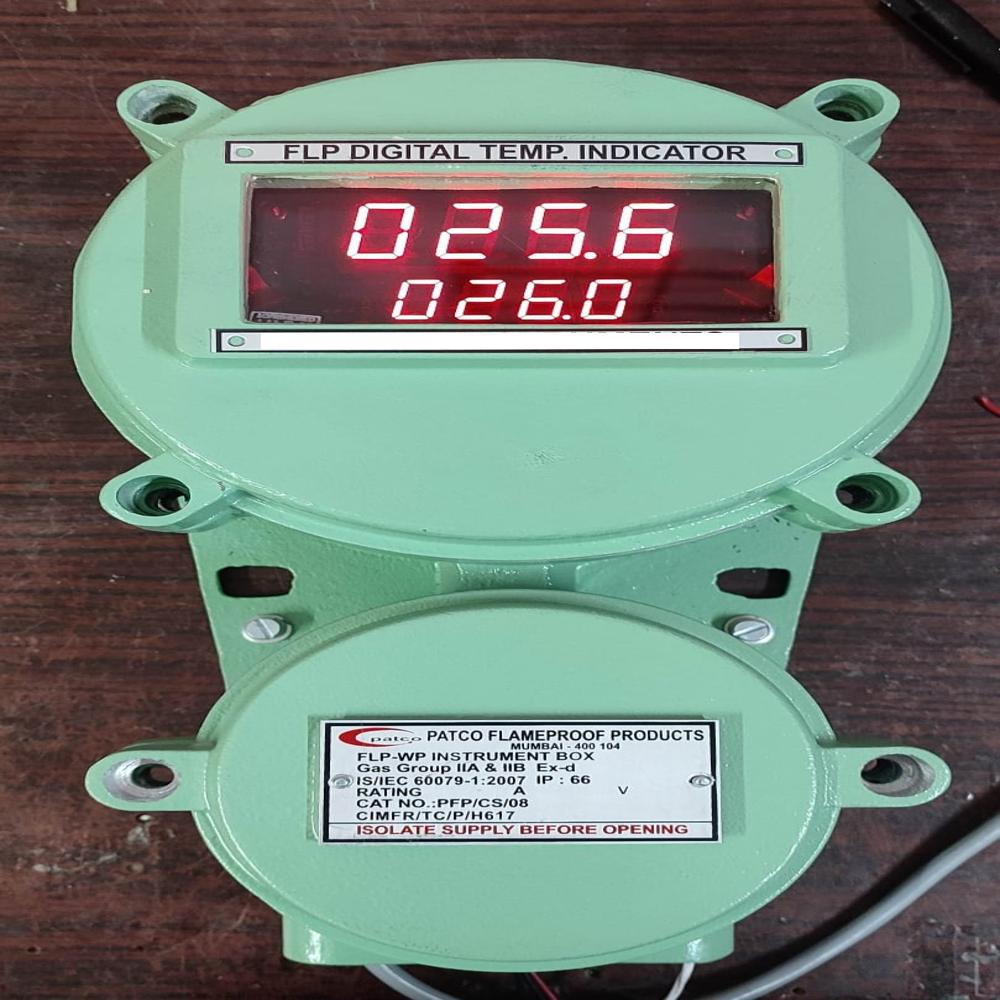

Flame Proof TEMPERATURE CONTROLLER

2200.0 INR/Piece

Get a Price/Quote

Product Details:

Way 3
Base Material Other
Protection Class IP66
Cover Material Other
Product Type Electric Panel
Material Other
Surface Finish Other
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

Flame Proof TEMPERATURE CONTROLLER Price And Quantity

Minimum Order Quantity 2 Piece
Price 2200.0 INR/Piece

Flame Proof TEMPERATURE CONTROLLER Product Specifications

Base Material Other
Protection Class IP66
Surface Color Other
Material Other
Surface Finish Other
Cover Material Other
Phase 1
Way 3
Product Type Electric Panel
Rated Voltage 230V Volt (V)
Frequency (MHz) 50 Hertz (HZ)
Warranty 1 YEAR
Frequency 50 Hertz (HZ)

Flame Proof TEMPERATURE CONTROLLER Trade Information

Payment Terms Cash Advance (CA)
Supply Ability 100 Piece Per Month
Delivery Time 7 Days
Sample Policy Contact us for information regarding our sample policy
Main Domestic Market All India
Certifications CMRI- DHANBAD

Product Description

PRODUCT DESCRIPTION :

Minimum Order Quantity	1 Unit
Model Name/Number
Temperature Range	-99.9 to +400.0C
Power	100 to 240 VAC
Accuracy	+/- 0.1 Deg. C +/- 1 count
Type	Digital
Control Output	1 or 2 Relay Output

We provide the high quality of Flameproof Digital Temperature Indicator Controller.

Specifications:

Temperature Measuring Range : 100.0 to +200.0 Deg. C / Optional -100.0 to +400.0 Deg. C
Display : 1. High Super Bright Red LED 7 Segment Display
Accuracy +/- 0.1 Deg. C
Input : RTD Pt-100 3 Wire Sensor
Retransmission Options : 4-20 mA Retransmission/RS485 Modbus RTU Protocol Multidrop
Certification : CMRI, Dhanbad Certified for use in Gas Groups I, II, II A & II B
Calibration : 3 Point Calibration for perfect linearization across the range, Optional Software
