FLAMEPROOF CUM WEATHERPROOF LOCAL CONTROL STATION

• Automation Grade
• Manual

• Circuit Type
• 1NO + 1NC (Standard)

• Color
• Gray housing, Red/Green Indicator

• Contact Resistance
• 50 m

• Current Rating
• 6A-10A

• Finish Type
• Epoxy Powder Coated

• Insulation Resistance
• >100 M at 500V DC

• Material
• Cast Aluminium Alloy

• Max. Current
• 10A

• Max. Voltage
• 415V AC

• Mechanical Life
• >1,000,000 operations

• Mounting Type
• Surface Mounting

• No Of Poles
• 1, 2 or as required

• Number of Module
• Single/Double or Customized

• Operating Temperature
• -20C to +60C

• Product Type

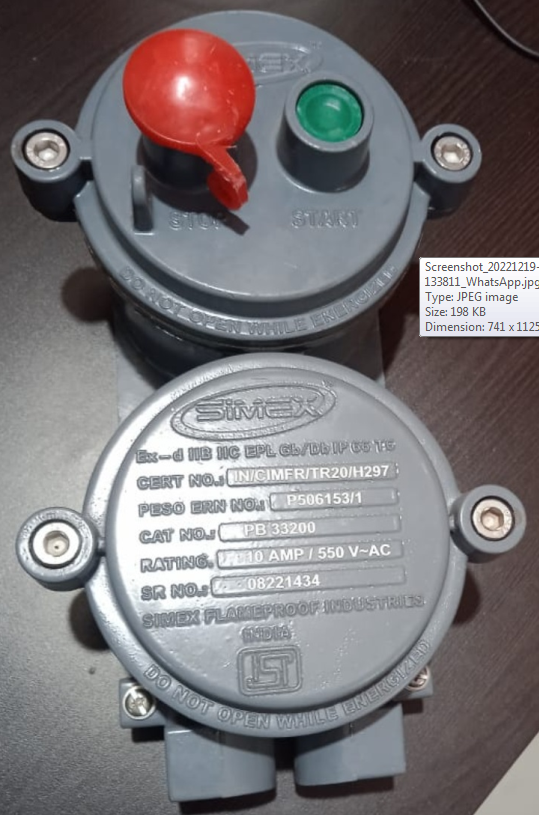

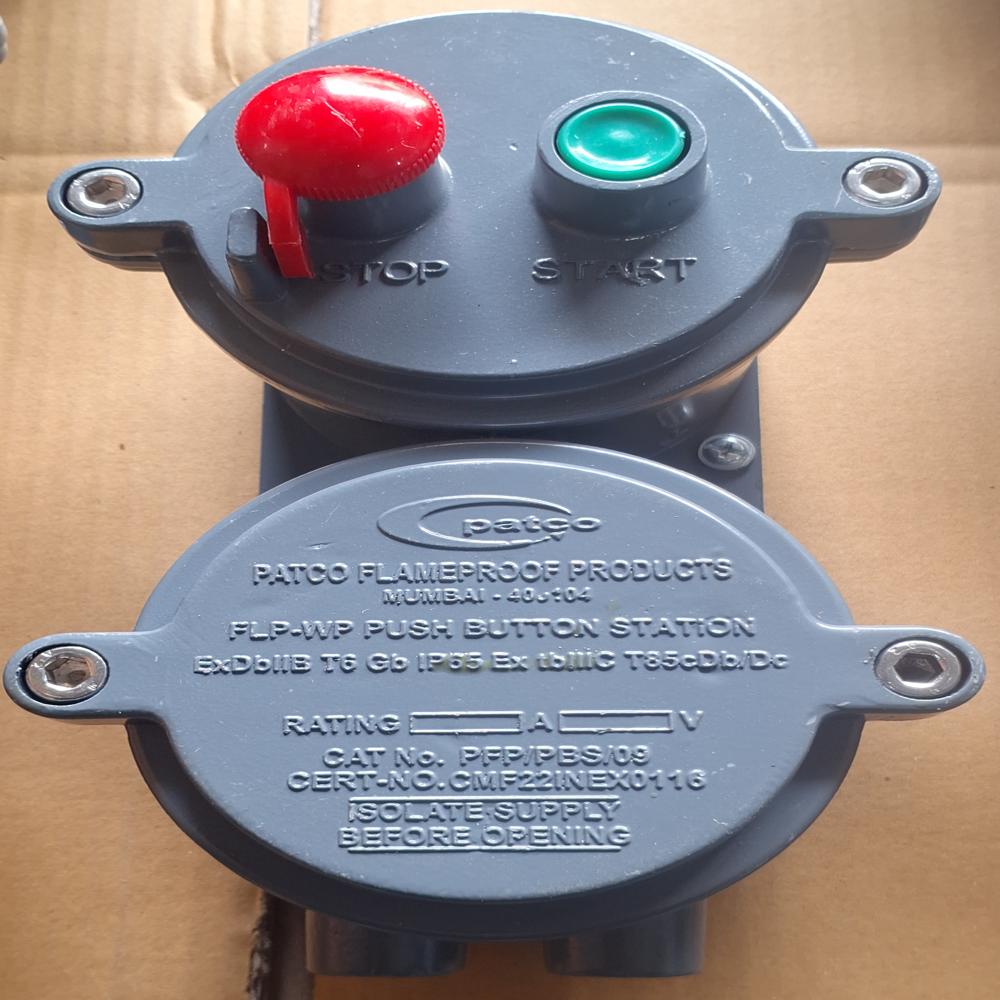

• Flameproof Push Button Station With Indicator

• Protection Level
• IP65

• Rated Voltage
• 250V/415V AC

• Response Time
• Instantaneous

• Size
• Standard / As per requirement

• Stoke
• 3 mm (approx)

• Temperature Range
• -20C to +60C

• Weight
• 1.2 kg (approx)

• Automation Grade
• Manual

• Circuit Type
• SPST/DPST

• Color
• Grey body, Green & Red Push Buttons

• Contact Resistance
• 50 m

• Current Rating
• 10A

• Finish Type
• Epoxy powder coated

• Insulation Resistance
• 100 M (at 500V DC)

• Material
• Aluminium Alloy (LM6) body

• Max. Current
• 10A

• Max. Voltage
• 415 VAC

• Mechanical Life
• > 1 million operations

• Mounting Type
• Surface Mount

• No Of Poles
• 2 or 3 (as per configuration)

• Number of Module
• Two (Reverse & Forward)

• Operating Temperature
• -20C to +60C

• Product Type
• Flameproof Reverse Forward Push Button Station

• Protection Level
• IP65

• Rated Voltage
• 415V AC

• Response Time
• < 20 ms

• Size
• Standard: Approx. 220mm x 120mm x 100mm (LxWxH)

• Stoke
• Short Stroke, Momentary

• Temperature Range
• -20C to +60C

• Weight
• Approx. 2.2 kg

• Automation Grade
• Manual

• Circuit Type
• Single/Double Break

• Color
• Grey (Body), Black/Green/Red (Button)

• Contact Resistance
• 50 m

• Current Rating
• 10A

• Finish Type
• Epoxy Powder Coated

• Insulation Resistance
• 100 M at 500V DC

• Material
• Cast Aluminium Alloy

• Max. Current
• 10A

• Max. Voltage
• 415V AC

• Mechanical Life
• >1 million operations

• Mounting Type
• Surface Mounting

• No Of Poles
• 1NO/1NC or as specified

• Number of Module
• 1/2/3 Modules (as per model)

• Operating Temperature
• -20C to +55C

• Product Type
• Flameproof Direct Entry Push Button Station

• Protection Level
• IP66 (as per IS/IEC 60529)

• Rated Voltage
• 240/415V AC

• Response Time
• 20 ms

• Size
• Standard Enclosure Size (refer to drawing/spec)

• Stoke
• Approx. 3 mm

• Temperature Range
• -20C to +55C

• Weight
• Approx. 1.4 kg

• Automation Grade
• Manual

• Circuit Type
• AC Power Distribution

• Color
• Grey / Silver

• Contact Resistance
• 2 m

• Current Rating
• 32A

• Finish Type
• Epoxy Powder Coated

• Insulation Resistance
• >100 M at 500V DC

• Material
• Other

• Max. Current
• 32A

• Max. Voltage
• 415V AC

• Mechanical Life
• >10,000 operations

• Mounting Type
• Surface (Wall) Mounting

• No Of Poles
• 5 (3P+N+E)

• Number of Module
• Single

• Operating Temperature
• -20C to +55C

• Product Type
• Other, Switch Socket

• Protection Level
• IP65 / IP66

• Rated Voltage
• 415V

• Response Time
• Instantaneous mechanical operation

• Size
• Upto 32A, Standard (Customizable options available)

• Temperature Range
• -20C to +55C

• Weight
• Approx 2.8 kg (for 32A with plug)

• Automation Grade
• Manual

• Color
• Red / Grey

• Contact Resistance
• 50 m Volt per ampere (V/A)

• Current Rating
• 6A / 10A

• Finish Type
• Epoxy Powder Coated

• Insulation Resistance
• >= 100 M at 500V DC

• Material
• Die-cast Aluminum Alloy

• Max. Current
• 10A Ampere (amp)

• Max. Voltage
• 415V AC Volt (V)

• Mechanical Life
• >1,000,000 Operations Hours

• Mounting Type
• Wall/Surface Mounted

• No Of Poles
• 1 Pole

• Number of Module
• Single

• Operating Temperature
• -20 C to +60 C Celsius (oC)

• Product Type
• Flameproof Emergency Push Button Station

• Protection Level
• IP65

• Rated Voltage
• 230/415V AC Volt (V)

• Response Time
• <30 ms Hours

• Size
• 140 mm x 70 mm x 70 mm (approx.)

• Stoke
• Standard stroke 4.5mm

• Temperature Range
• -20 C to +60 C Celsius (oC)

• Weight
• Approx. 1.2 kg Kilograms (kg)

• Automation Grade
• Manual/Automatic

• Circuit Type
• Dual circuit Hooter & Acknowledge Switch

• Color
• Red (with optional Amber/Yellow/Green)

• Contact Resistance
• 50 m

• Current Rating
• 1.5A

• Finish Type
• Anti-corrosive Powder Coating

• Insulation Resistance
• >100 M

• Material
• Die Cast Aluminium Alloy

• Max. Current
• 1.5A

• Max. Voltage
• 250V AC/DC

• Mechanical Life
• > 500,000 operations

• Mounting Type
• Surface or Wall Mounting

• No Of Poles
• Single Pole

• Number of Module
• Single

• Operating Temperature
• -20C to +55C

• Product Type
• Flameproof Hooter With Acknowledgement

• Protection Level
• IP66

• Rated Voltage
• 110V / 230V AC or 24V / 48V / 110V DC (model-specific)

• Response Time
• <50 ms

• Size
• Standard (as per model)

• Temperature Range
• -20C to +55C

• Weight
• 2.5-3.5 kg (approx.)

• Cable Type
• 2.5/4.0

• Conductor
• copper

• Current Rating
• 32A

• Material
• FLP

• Max. Current
• 32 Ampere (amp)

• Mechanical Life
• 1 year Years

• No Of Poles
• 4

• Number of Module
• 4

• Phase
• 3

• Power Rating
• 415v

• Product Type

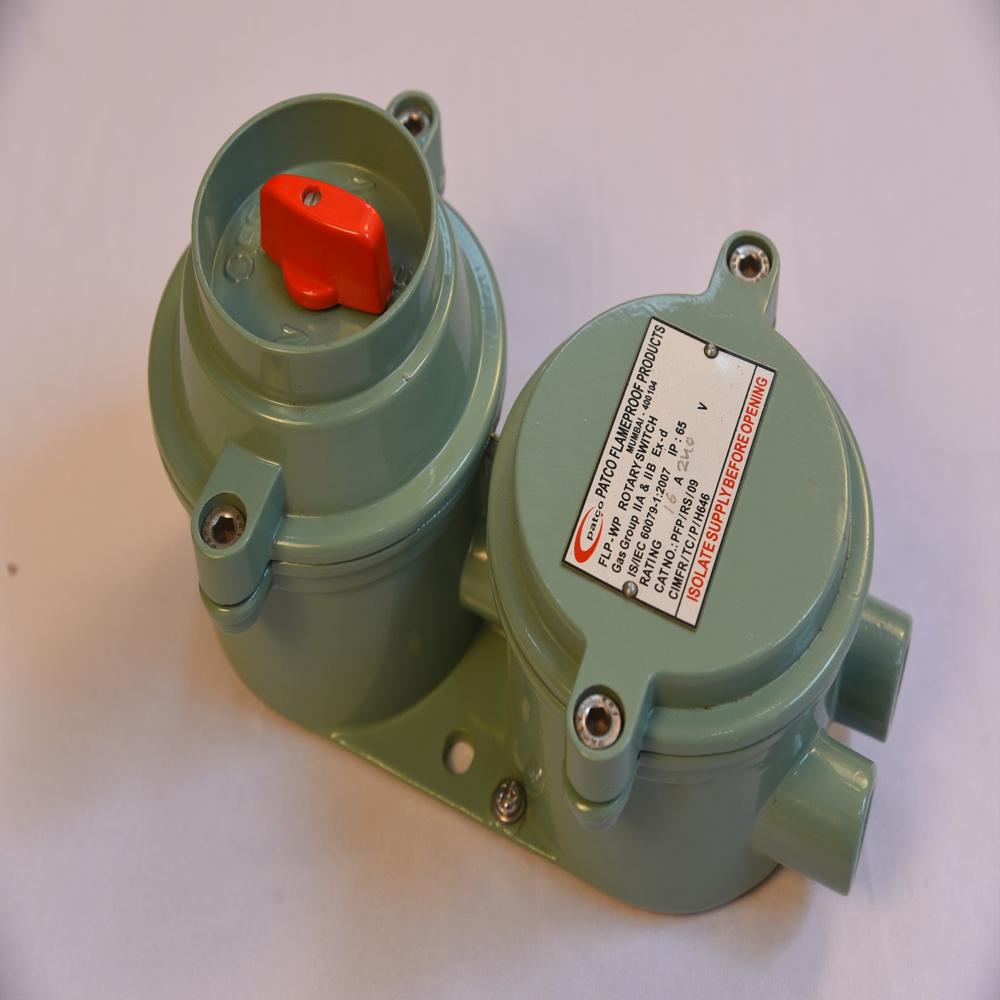

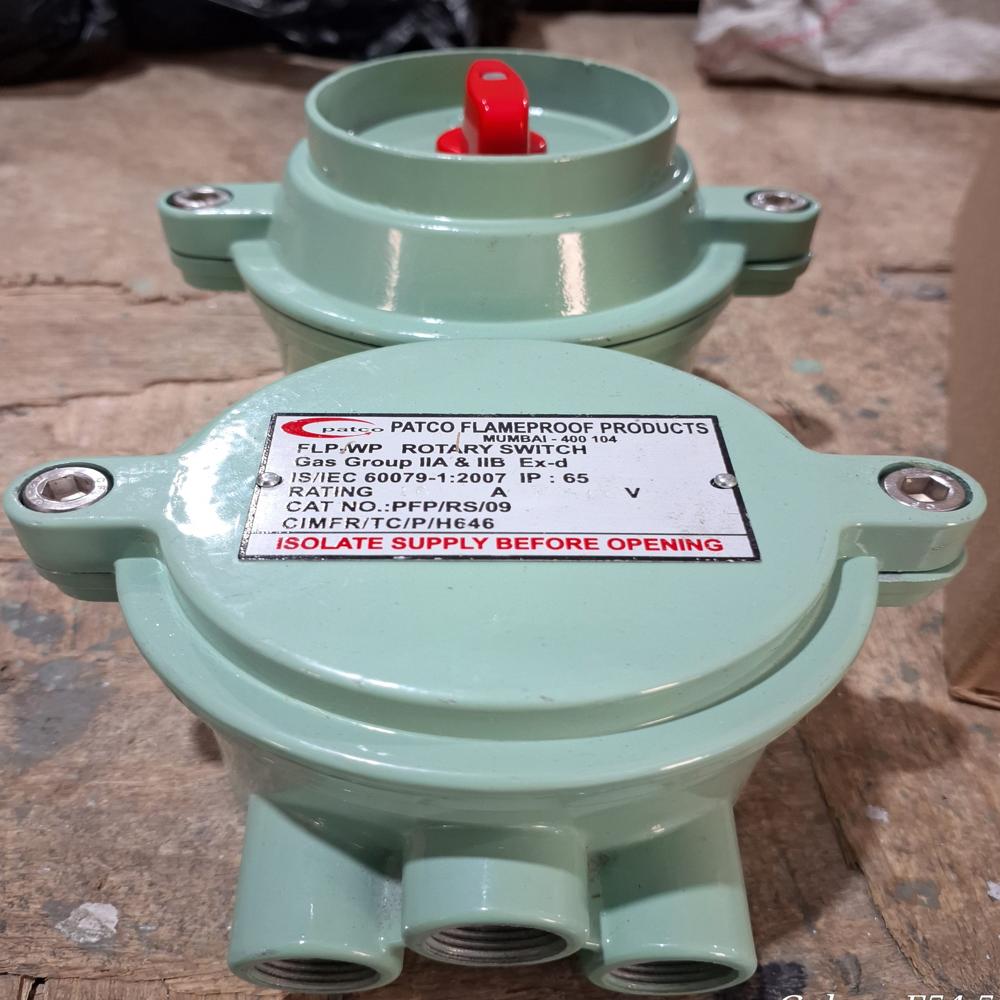

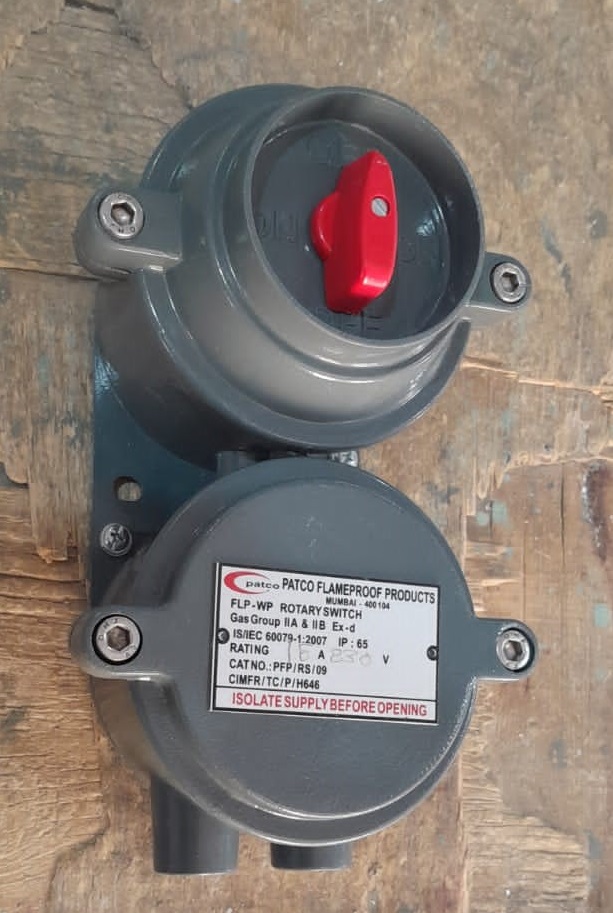

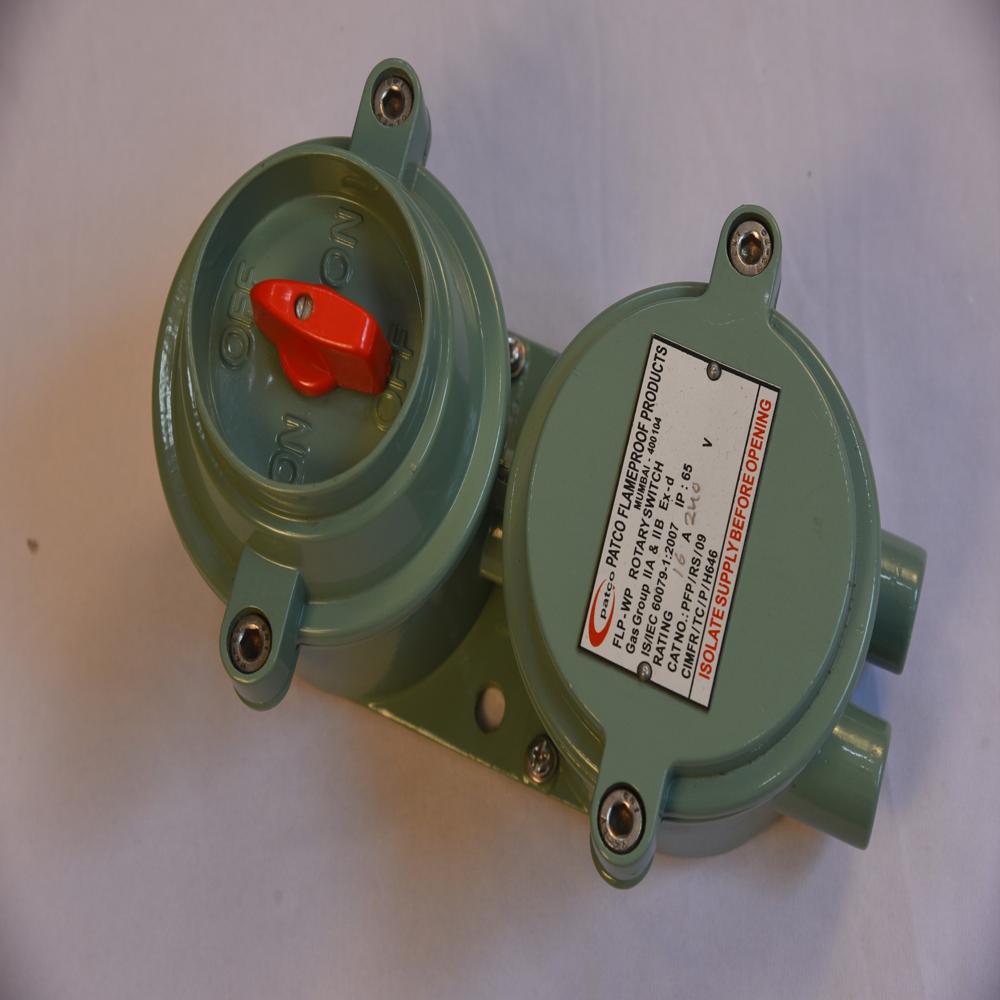

• Rotary Switch

• Protection Level
• ip66

• Rated Voltage
• 415v Volt (V)

• Color
• Grey

• Features
• Strong quality

• Max. Voltage
• 10 Volt (V)

• Mechanical Life
• 1 Years

• Operating Temperature
• 70 Celsius (oC)

• Protection Level
• IP65

• Size
• Standard

• Temperature Range
• 75 Celsius (oC)
