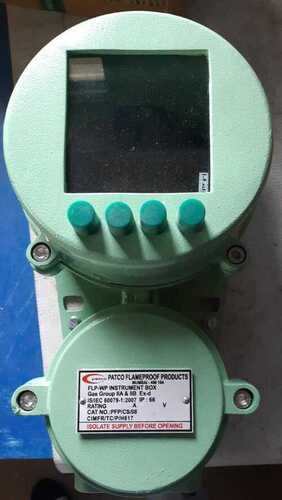

FLAMEPROOF TEMPERATURE INDICATOR 96 X 96 MM GLASS WINDOW
2000.00 INR/Piece
Product Details:
- Rated Insulation Voltage 660V
- Operating Voltage 230V AC
- Features Explosion proof, Corrosion Resistant, Clear Analog Indication
- Thickness 2.5 mm
- Rated Operation Voltage 230V
- Panel Type Window Panel Type
- Cabinet Material Flameproof Aluminium Alloy
- Click to view more
X
FLAMEPROOF TEMPERATURE INDICATOR 96 X 96 MM GLASS WINDOW Price And Quantity
- 2000.00 INR/Piece
- 1 Number
- Suitable for RTD or Thermocouple inputs
- 2 x 3/4" ET / NPT / Metric Knockout
- Highly visible, black scale on white background
- Panel Mounting, Wall Mounting or Surface Mounting
- Toughened Window Glass 4 mm
- Brass / Nickel Plated
- PESO/CCOE Certified
- 4 Corner Mounting Holes
- Approx. 2.8 kg
- -20°C to +55°C
- 0°C to 400°C or as specified
- 96 mm x 96 mm (Clear View)
FLAMEPROOF TEMPERATURE INDICATOR 96 X 96 MM GLASS WINDOW Product Specifications
- 230V AC
- Powder Coated / Painted
- 2.5 mm
- 230V
- Window Panel Type
- Explosion proof, Corrosion Resistant, Clear Analog Indication
- 230V AC
- 96 mm x 96 mm x 110 mm
- 660V
- 5A
- 50 Hz
- Analog Pointer Display
- Temperature Indicator, Terminal Block, External Cable Entry
- 5A
- Flameproof Aluminium Alloy
- Temperature Measurement in Hazardous (Flammable) Areas
- Flameproof (Ex d) enclosure, Zone 1 & 2
- Light Grey / Black
- 5A
- Ex d IIA & IIB
- Manual
- IP65
- Toughened Glass Window / Aluminium
- IS/IEC 60079-1
- Single
- Aluminium Alloy (LM6)
- Screw Terminal
- Natural Air Cooling
- Suitable for RTD or Thermocouple inputs
- 2 x 3/4" ET / NPT / Metric Knockout
- Highly visible, black scale on white background
- Panel Mounting, Wall Mounting or Surface Mounting
- Toughened Window Glass 4 mm
- Brass / Nickel Plated
- PESO/CCOE Certified
- 4 Corner Mounting Holes
- Approx. 2.8 kg
- -20°C to +55°C
- 0°C to 400°C or as specified
- 96 mm x 96 mm (Clear View)
FLAMEPROOF TEMPERATURE INDICATOR 96 X 96 MM GLASS WINDOW Trade Information
- 20000 Number Per Month
- 5 Days
- All India
Product Description
We have been a noted supplier or FLP Instrument Enclosure in the market. It is available with multiple cable entry and inlet for non electrical sensor like liquid, air, gas for several instruments such as thermostats, pressure switch etc. as per customers specification. FLP Instrument Enclosure can be availed from us at cost- effective prices.
Other details:
Condition- New
Features- Durable
Prices may vary with sizes and specifications
Superior Protection in Hazardous Zones
Engineered for use in hazardous areas, this indicator meets IS/IEC 60079-1 and is certified Ex d IIA & IIB, ensuring exceptional flameproof safety in Zone 1 & 2 environments. The toughened glass window withstands impacts, while the powder-coated aluminum enclosure guarantees corrosion resistance and prolonged operational life even under harsh conditions.
Versatile Installation and Connectivity
With options for panel, wall, or surface mounting, this device easily adapts to various site requirements. Dual cable entry (3/4" ET / NPT / Metric knockout) and screw-type terminals provide straightforward wiring for quick setup, suitable for both new and retrofit installations. It interfaces seamlessly with standard RTD or thermocouple sensors for dependable analog temperature indication.
Reliable Analog Display and Wide Range
The device delivers accurate temperature readings from 0C to 400Cor customized rangesthrough a clear analog pointer display. High-contrast black-on-white scale markings ensure readings are easy to interpret, even from a distance or in low-light conditions, contributing to efficient process monitoring in industrial operations.
FAQs of FLAMEPROOF TEMPERATURE INDICATOR 96 X 96 MM GLASS WINDOW:
Q: How is the FLAMEPROOF TEMPERATURE INDICATOR installed?
A: The indicator can be mounted using panel, wall, or surface mounting methods. For secure installation, use the four corner mounting holes and ensure cable entry through the 3/4" ET / NPT / Metric knockout ports. The wiring is connected via screw terminals, compatible with both RTD or thermocouple sensors.Q: What makes this temperature indicator suitable for hazardous environments?
A: This product is constructed with a flameproof (Ex d) aluminum enclosure and a toughened 4 mm glass window, complying with IS/IEC 60079-1 standards and holding PESO/CCOE certifications. It is specifically designed for use in flammable (hazardous) zones 1 & 2, providing explosion protection and reliable operation in environments with volatile substances.Q: When should I use this temperature indicator over conventional models?
A: Choose this flameproof indicator when temperature measurement is required in hazardous zones, such as chemical plants, oil refineries, or any area with flammable gases. Its explosion- and corrosion-resistant construction make it ideal for demanding industrial environments where safety and durability are critical.Q: Where can this device be effectively applied?
A: This temperature indicator is suitable for use in industrial facilities across India, including chemical processing, oil and gas plants, pharmaceutical manufacturing, and power generation sectorsanywhere that hazardous (flammable) atmospheres demand robust, explosion-proof instrumentation.Q: What is the benefit of the analog pointer display and scale design?
A: The analog pointer display with highly visible black scale on a white background enables quick and accurate temperature readings at a glance. This clear visual indication helps operators monitor processes efficiently, reducing the risk of errors in critical industrial operations.Q: How does the device protect against external elements?
A: Rated IP65, the indicator is dust-tight and protected against water jets from any direction. The powder-coated surface finish further adds to its resistance against chemicals and corrosion, enhancing its lifespan in challenging industrial environments.Tell us about your requirement
